▼BF:AT SERIES(BEAD CORES AXIAL TAPPING)

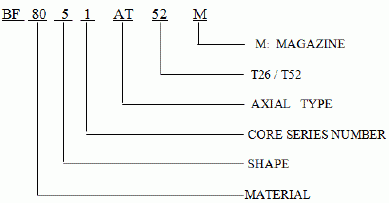

1.ORDERING CODE
2.SHAPES
3.DIMENSIONS
Unit: mm NO. FERRICO PART NO. ΦA D IMPEDANCE(Ω)TYP./100MHz 1 BF 8051AT52M 3.5±0.15 4.40±0.2 65 2 BF 8056AT52M 3.5±0.15 5.00±0.2 69 3 BF 8052AT52M 3.5±0.15 6.00±0.3 78 4 BF 805ACAT52M 3.5±0.15 6.50±0.3 87 5 BF 805AAT52M 3.5±0.15 7.50±0.3 100 6 BF 8053AT52M 3.5±0.15 8.00±0.3 105 7 BF 8054AT52M 3.5±0.15 9.00±0.3 122 8 BF 805JAT52M 3.5±0.15 10.0±0.5 135 9 BF 805AHAT52M 3.5±0.15 11.00±0.5 145 10 BF 805DAT52M 3.5±0.15 12.00±0.5 151 11 BF 805EAT52M 3.5±0.15 14.00±0.5 183 REMARK : OTHER SIZE ARE AVAILABLE UPON REQUEST CLICK HERE TO BF:RT
