¨‹DR(D29) SERIES(COIL FORM)

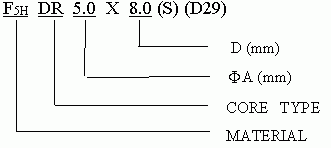

       1.ORDERING CODE


       2.SHAPES


       3.DIMENSIONS
Unit:mm
NO.
FERRICO
PART NO.
FIG.
¦µA
¦µB
D
E/E2
F
1
_DR 3.0X6.0(D29)
1
3.0¡À0.15
2.0¡À0.15
6.0¡À0.30
1.5¡À0.15
3.0¡À0.15
2
 _DR 4.0X5.5(D29)
1
4.0¡À0.15
2.0¡À0.15
5.5¡À0.30
1.6¡À0.15
2.3¡À0.15
3
 _DR 4.0X10.0(D29)
1
4.0¡À0.15
2.4¡À0.15
10.0¡À0.30
1.5¡À0.15
7.0¡À0.20
4
 _DR 4.0X10.0(S)(D29)
2
4.0¡À0.15
2.0¡À0.15
10.0¡À0.30
1.5REF.
7.0¡À 0.10
0.20
5
 _DR 5.0X8.0(S) (D29)
2
5.0¡À0.15
2.5¡À0.15
8.0¡À0.20
2.0¡À0.15
4.0¡À0.20
6
 _DR 5.0X12.0(D29)
1
5.0¡À0.15
3.0¡À0.15
12.0¡À0.30
2.1¡À0.15
7.8¡À0.20
7
 _DR 5.0X12.0(S)(D29)
3
5.0¡À0.15
3.0¡À0.15
12.0¡À0.30
2.0¡À0.15
8.0¡À0.20
8
 _DR 6.0X8.0 (D29)
2
6.0¡À0.20
2.5¡À0.15
8.0¡À0.30
2.0¡À0.15
4.0¡À0.15
9
 _DR 6.0X12.0(D29)
1
6.0¡À0.20
3.5¡À0.15
12.0¡À0.30
4.0¡À0.20
4.0¡À0.15
10
 _DR 10.0X20.0(S)(D29)
2
10.0¡À0.30
5.0¡À0.15
20.0¡À0.40
3.0¡À0.20
14.0¡À0.30
REMARK:OTHER SIZES ARE AVAILABLE UPON REQUEST
