MJ SERIES(CONNECTOR SUPPRESSION CUBOIDS)


       1.ORDERING CODE

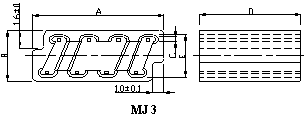

       2.SHAPES



       3.DIMENSIONS
Unit:mm
NO.
FERRICO
PART NO.
A
B
C(C)
D
E
F
1
__MJ1
11.40.2
4.40.1
0.40.1
8.80.2
3.7 REF.
2
__MJ3
11.40.2
4.40.1
0.40.1
8.80.2
3.7 REF.
3
__MJ6
9..40.15
4.370.08
1.000.08
8.760.15
2.540.08
2.540.08
4
__MJ8
11.40.1
4.40.1
1.00.1
8.70.2
2.540.1
2.540.1
REMARK : OTHER SIZE ARE AVAILABLE UPON REQUEST
