¨‹NF SERIES(EMI SUPPRESSION CORES WITH PLASTIC CASE)

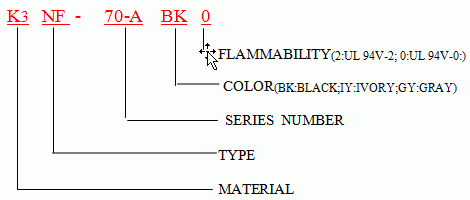

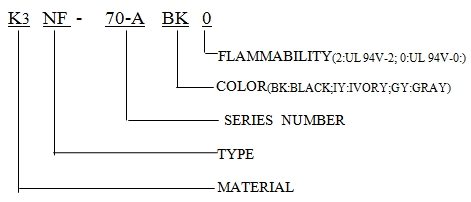

       1.ORDERING CODE

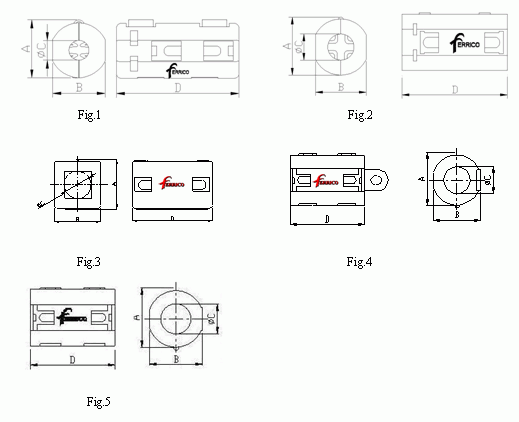

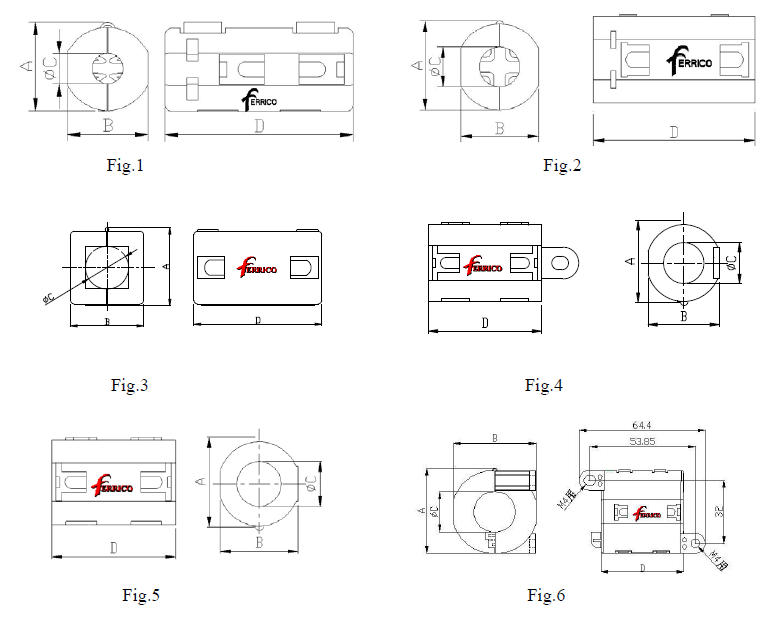

       2.SHAPES



       3.DIMENSIONS
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡Unit:mm

NO.

FERRICO
PART NO.

Fig.

A

B

C

D

CABLE DIAMETER

IMPEDANCE(¦¸)
TYP.

25MHz
100MHz
1
1
12.0¡À1.0
11.5¡À1.0
4.0¡À1.0
25.0¡À1.0
MAX.¦µ3.5
66
142
2
   K3 NF-55(N)BK0
2
14.5±1.0
13.5±1.0
5.5±1.0
29.5±1.0
MAX.Φ5.0
64
146
3
   K3 NF-55-B(N)BK0
2
14.5±1.0
13.5±1.0
5.5±1.0
43.0±1.0
MAX.Φ5.0
125
270
4
2
19.8¡À1.0
18.0¡À1.0
6.0¡À1.0
37.0¡À1.0
MAX.¦µ5.5
150
260
5
3
20.5¡À1.0
20.0¡À1.0
6.5¡À1.0
32.5¡À1.0
MAX.¦µ6.2
123
293
6
1
16.0¡À1.0
14.0¡À1.0
7.2¡À1.0
24.0¡À1.0
MAX.¦µ6.7
54
100
7
1
16.0±1.0
14.0±1.0
7.2±1.0
24.0±1.0
MAX.Φ6.7
60
100
8
   K3 NF-72(N)BK0
1
16.0¡À1.0
14.0¡À1.0
7.2¡À1.0
31.5¡À1.0
MAX.¦µ6.7
60
133
9
2
19.8±1.0
18.0±1.0
9.0±1.0
37.0±1.0
MAX.Φ8.8
100
178
10
2
19.8¡À1.0
18.0¡À1.0
9.0¡À1.0
37.0¡À1.0
MAX.¦µ8.8
127
180
11
3
25.5±1.0
23.5±1.0
10.0±1.0
32.5±1.0
MAX.Φ9.7
113
203
12
3
25.5¡À1.0
23.5¡À1.0
10.0¡À1.0
32.5¡À1.0
MAX.¦µ9.7
165
217
13
2
20.5¡À1.0
21.0¡À1.0
11.0¡À1.0
36.5¡À1.0
MAX.¦µ10.5
76
140
14
4
20.5¡À1.0
21.0¡À1.0
11.0¡À1.0
30.5¡À1.0
MAX.¦µ10.8
76
140
15
5
20.5¡À1.0
21.0¡À1.0
11.0¡À1.0
30.5¡À1.0
MAX.¦µ10.8
76
140
16
2
20.5±1.0
21.0±1.0
11.0±1.0
36.5±1.0
MAX.Φ10.5
110
157
17
   K3 NF-125(N)BK0
2
30.0±1.0
29.0±1.0
13.0±1.0
39.0±1.0
MAX.Φ12.5
115
212
18
   F6 NF-125BK0
2
30.0¡À1.0
29.0¡À1.0
13.0¡À1.0
39.0¡À1.0
MAX.¦µ12.5
152
203
19
3
31.5¡À1.0
30.5¡À1.0
13.0¡À1.0
32.5¡À1.0
MAX.¦µ12.7
122
236
20
2
40.0±1.0
40.0±1.0
19.0±1.0
41.0±1.0
MAX.Φ18.5
123
206
21
2
42.5±1.0
42.0±1.0
20.5±1.0
42.0±1.0
MAX.Φ20.0
137
215
22
6
42.5¡À1.0
42.0¡À1.0
20.5¡À1.0
42.0¡À1.0
MAX.¦µ20.0
160
220

REMARK : 1. COMBINATION CASE & 2 FERRITE PARTS
¡¡¡¡¡¡¡¡¡¡2. OTHER SIZE ARE AVAILABLE UPON REQUES
                    3.CASE COLOR(BLACK,IVORY,GRAY)IS AVAILABLE UPON REQUEST
