NFT SERIES(EMI SUPPRESSION CORES WITH PLASTIC CASE)

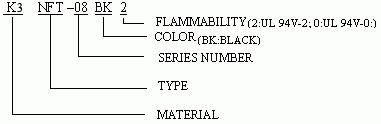

       1.ORDERING CODE

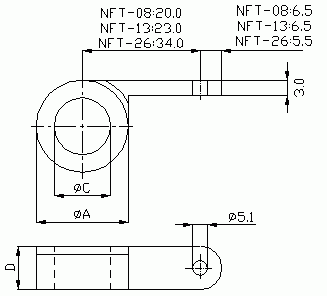

       2.SHAPES





       3.DIMENSIONS

Unit:mm

NO.

FERRICO
PART NO.
A
C
D
CABLE DIAMETER
IMPEDANCE()TYP.
25 MHz
100 MHz
1
23.01.0
8.21.0
12.51.0
MAX 8.0
52
90
2
29.31.0
13.81.0
13.51.0
MAX 13.5
49
88
3
51.51.0
24.51.0
17.01.0
MAX 24.0
62
115
REMARK: OTHER SIZE ARE AVAILABLE UPON REQUESET
