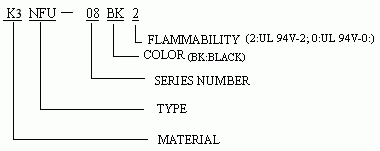

| 1.ORDERING CODE |
| 2.SHAPES |
| 3.DIMENSIONS |
Unit:mm |
NO. |
FERRICO PART NO. |
¦µA |
¦µC |
D |
CABLE
DIAMETER |
IMPEDANCE(¦¸)TYP. | |
25 MHz |
100 MHz |
||||||
1 |
20.0¡À1.0 |
8.3¡À1.0 |
12.0¡À1.0 |
MAX ¦µ8.0 |
50 |
90 |
|
2 |
26.5¡À1.0 |
13.5¡À1.0 |
14.0¡À1.0 |
MAX ¦µ13.0 |
47 |
86 |
|
| REMARK: OTHER SIZES ARE AVAILABLE UPON REQUESET |
