¨‹RHH/R3H /R4H/R6HSERIES(BALUN & WIDE BAND CHOKE CORES)

       1.ORDERING CODE

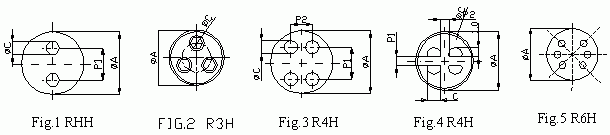

       2.SHAPES



       3.DIMENSIONS
                                                 Unit:mm

NO.

FERRICO PART NO.

FIG.

¦µA

D

¦µC/C

P1

P2
1
__ RHH 6.0X5.5X1.45
1
6.0¡À 0.3
5.5¡À0.3
1.45¡À0.15
2.6¡À0.1

2
__ RHH 7.0X5.5X1.4
1
7.0¡À 0.5
5.5¡À0.5
1.4¡À 0.1
2.7¡À0.1

3
__ R3H 16.0X28.0X4.4
2
16.0¡À0.4
28.0¡À 0.6
4.4¡À0.25

4
__ R4H 6.6X10.0X1.3
3
6.6¡À0.5
10.0¡À 0.3
1.3¡À0.1
2.2
2.2
5
__ R4H 6.6X3.5X1.45
4
6.6¡À0.5
3.5¡À0.3
1.45¡À 0.15
1.0
1.0
6
__ R4H 8.0X5.0X1.2
3
8.0¡À0.3
5.0¡À0.3
1.2¡À
0.3
0
3.0
3.0
7
__ R6H 6.0X10.0X0.8
5
6.0¡À0.3
10.0¡À0.4
0.87REF.

REMARK:OTHER SIZES ARE AVAILABLE UPON REQUEST
