▼RWW SERIES(COIL FORM)

       1.ORDERING CODE

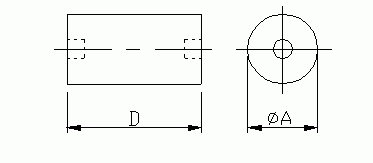

       2.SHAPES




       3.DIMENSIONS


NO.

FERRICO PART NO.

ΦA

D

1
__ RWW 3.0X12.0
3.0± 0.15
12.0±0.5
2
__ RWW 4.0X10
4.0± 0.15
10.0±0.3
3
__ RWW 4.0X30.0
4.0± 0.15
30.0± 0.8
4
__ RWW 5.0X12.0
5.0± 0.15
12.0±0.5
5
__ RWW 5.0X18.0
5.0± 0.15
18.0±0.5
6
__ RWW 6.0X30.0
6.0±0.2
30.0±0.8
7
__ RWW 10.0X12.0
10.0±0.2
12.0±0.5
8
__ RWW 10.0X25.0
10.0±0.2
25.0±0.5
